Loctek D7 Heavy Duty Desk Mount Monitor Arm W/ USB



The Loctek D7 Desk Mount Monitor Arm is easily adjusted, allowing you to effortlessly work in a more ergonomic and healthy posture, and avoid neck and back pain associated with "Desk hunch." This high performance monitor mount offers a wide range of features, including ports for audio, mic and USB devices.

This Sit-to-Stand desk comes in many variants:

  • Single Monitor comes in a heavy and super heavy version
  • Dual Monitor

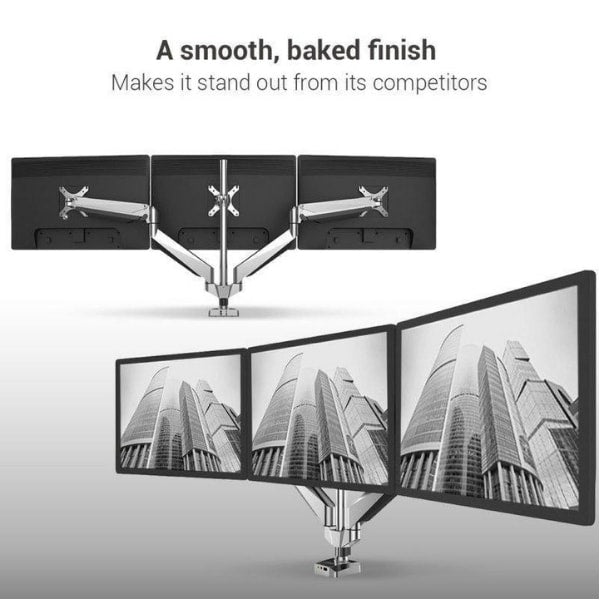

  • Triple Monitor






Loctek D7 Features

  • Constructed with aircraft-grade aluminum - Which offers a stylish anti-scratch surface.
  • Adjust your workstation to a more ergonomically correct position with minimal effort
  • Gas Spring Hovering System - Gracefully adjusts monitor height

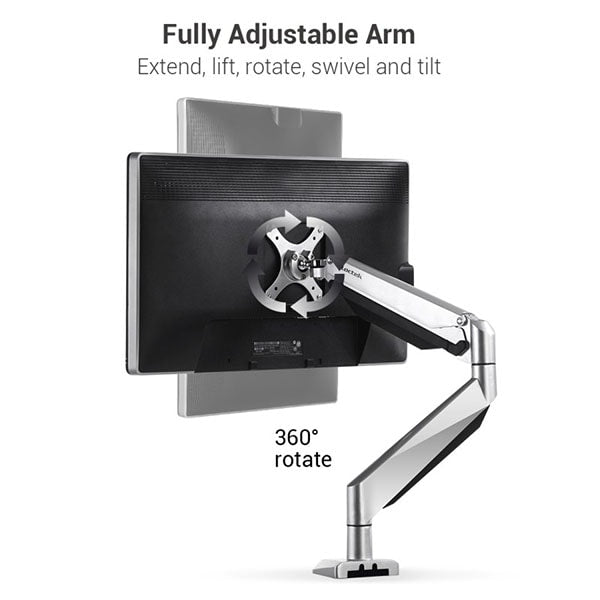

  • 360° Horizontal Arm Rotation - (180° in each direction)

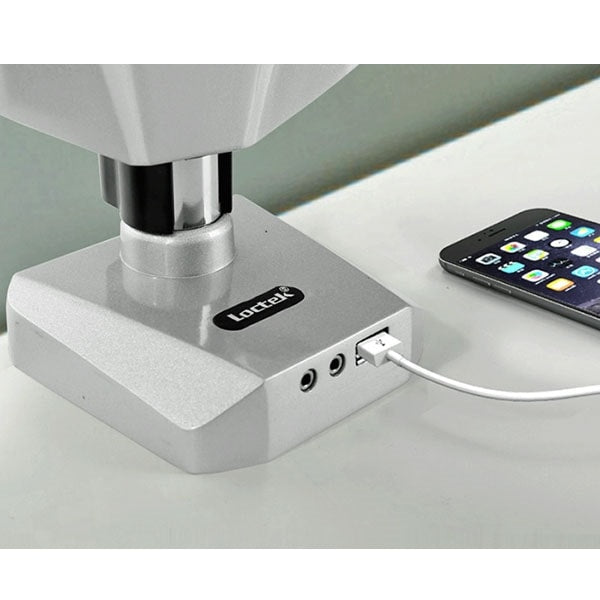

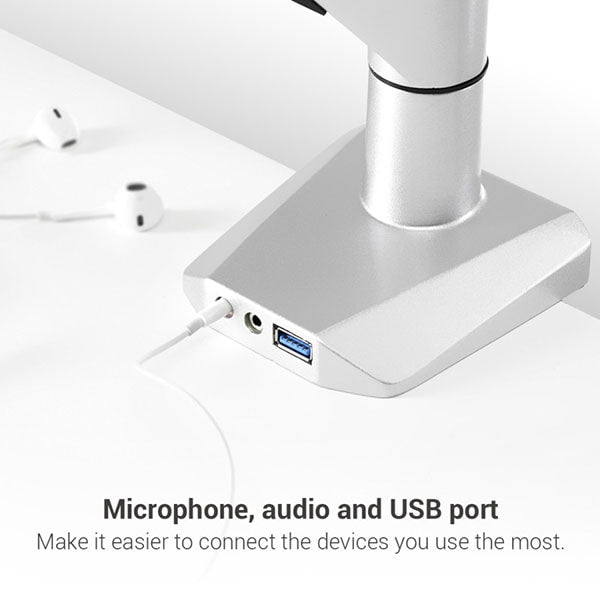

  • Front-Loading Ports - For audio, mic & USB 3.0
  • Fits most monitors
  • Easily Organize Your Desk -  With a cable management system
  • Extend or Retract Monitor Arm - rotate monitor to landscape or portrait mode
  • 10-Year limited manufacturer warranty

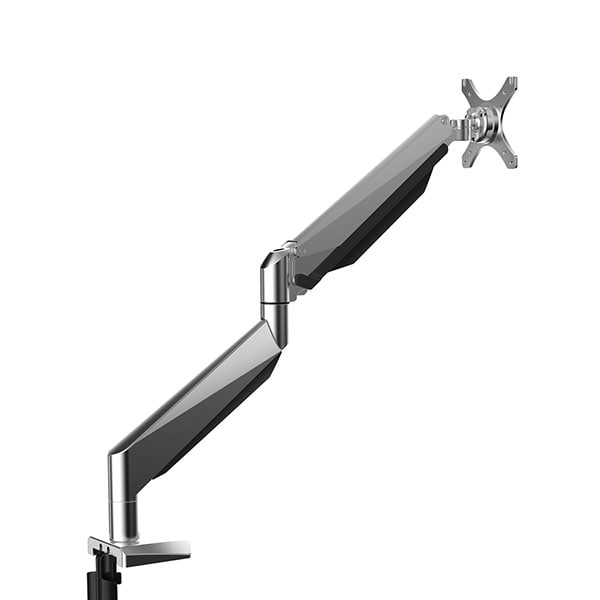

    Loctek D7A Monitor Arm Max Height Max Extension

    Loctek D7A Specifications

    Manufacturer Loctek
    Model Number D7A
    Additional Functions Audio, Mic & USB Ports
    Screen Size Range 10~27"
    Supported VESA 75 x 75, 100 x 100 mm
    Swivel ±90°
    Rotation ±180°
    Height Range

    Max Height 19.7"

    Max Extension 21.6"

    Loading Capacity 4.4~19.8 lbs
    Weight 9.03 lbs

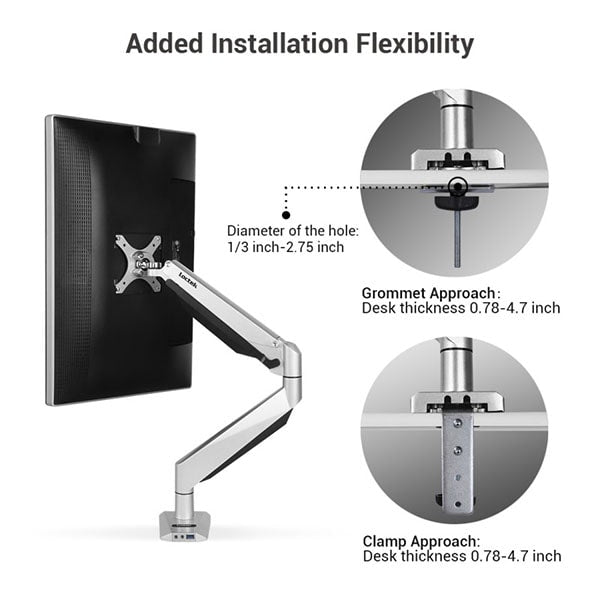

    Desk Thickness

    0.79”-4.72” (Clamp)

    0.79”-4.72” (Grommet)







    Loctek D7A Review

    Loctek D7A Dimensions

    Loctek D7A Dimensions

    Download the D7A Dimensional Illustration

    Loctek D7A Dimensional Illustration Pdf

    Loctek D7A Installation

    Setting up your D7A is easy (no tools required), but for more detailed information, please reference the Loctek D7A Installation Manual

    Loctek D7A Installation Manual Pdf

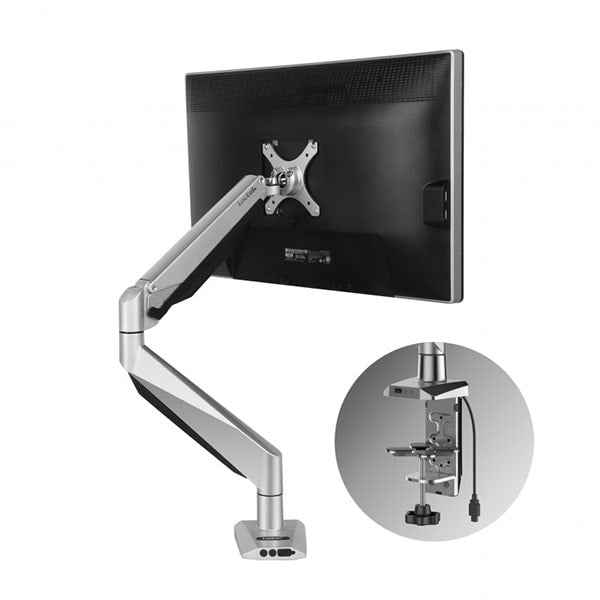

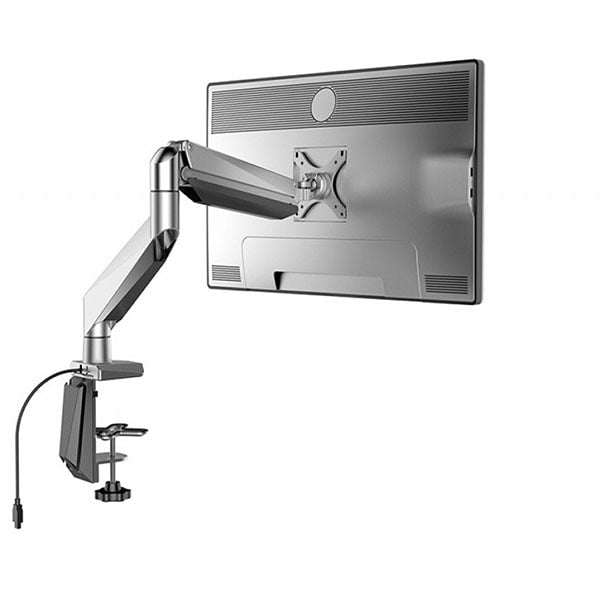

    Loctek D7L Specifications

    Manufacturer Loctek
    Model Number D7L
    Additional Functions Audio, Mic & USB Ports
    Screen Size Range 10"~34"
    Supported VESA 75 x 75, 100 x 100 mm
    Swivel ±90°
    Rotation ±180°
    Height Range

    Max Height 19.7"

    Max Extension 21.6"

    Loading Capacity 13.2~33 lbs
    Weight 13.9 lbs
    Desk Thickness

    0.98”-4.72” (Clamp)

    1/3 inch- 2.75 inch (Grommet)

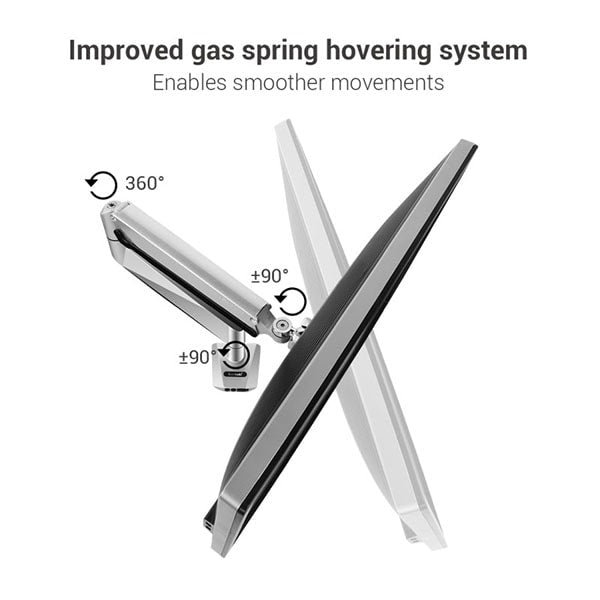

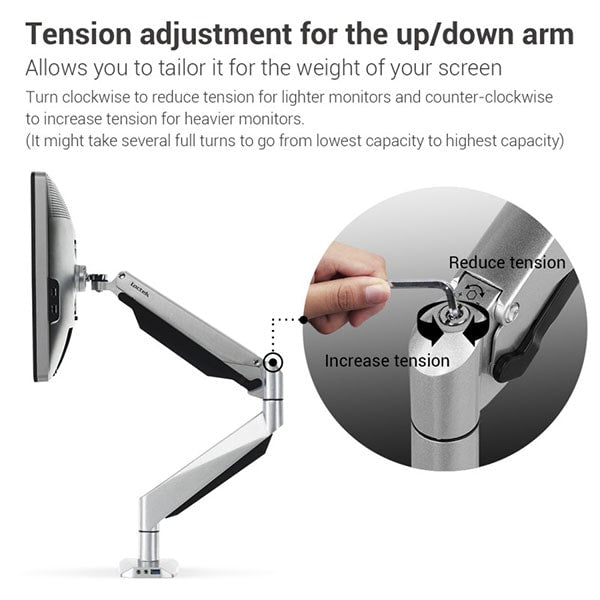

    Loctek D7A Monitor Arm Gas Spring

    Loctek D7L Installation

    Setting up your D7L is easy (no tools required), but for more detailed information, please reference the Loctek D7L Installation Manual

    Loctek D7L Installation Manual Pdf

    Loctek D7H Specifications

    Manufacturer Loctek
    Model Number D7H
    Additional Functions Audio, Mic & USB Ports
    Screen Size Range 10~34"
    Supported VESA 75 x 75, 100 x 100 mm
    Swivel ±90°
    Rotation ±180°
    Height Range

    Max Height 19.7"

    Max Extension 21.6"

    Loading Capacity 4.4~19.8 lbs
    Color Silver
    Desk Thickness

    0.98"-4.72" (Clamp)

    1/3 inch-2.75 inch (Grommet)

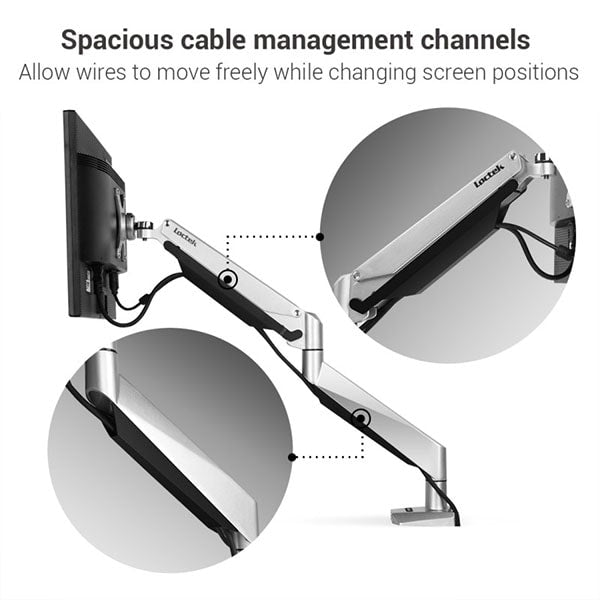

    Loctek D7A Monitor Arm Cable Management

    Loctek D7H Installation

    Setting up your D7H is easy (no tools required), but for more detailed information, please reference the Loctek D7H Installation Manual

    Loctek D7H Installation Manual Pdf

    Loctek D7D Specifications

    Manufacturer Loctek
    Model Number D7D
    Additional Functions Audio, Mic & USB Ports
    Screen Size Range 10~27"
    Supported VESA 75 x 75, 100 x 100 mm
    Swivel ±90°
    Rotation ±180°
    Height Range

    Max Height 18.8"

    Max Extension 20.5"

    Loading Capacity 4.4~19.8 lbs
    Weight 15.15 lbs

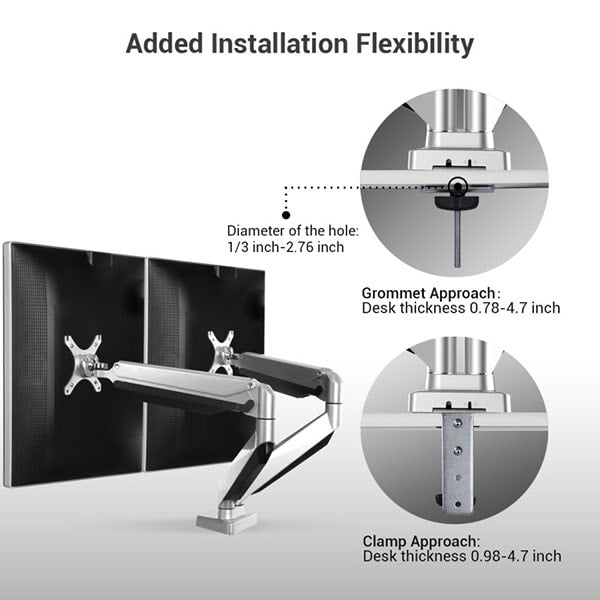

    Desk Thickness

    0.79”-4.72” (Clamp)

    0.98”-4.72” (Grommet)

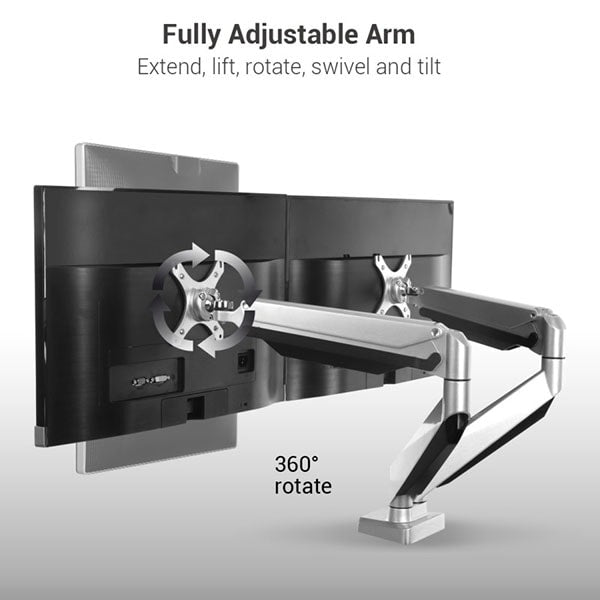

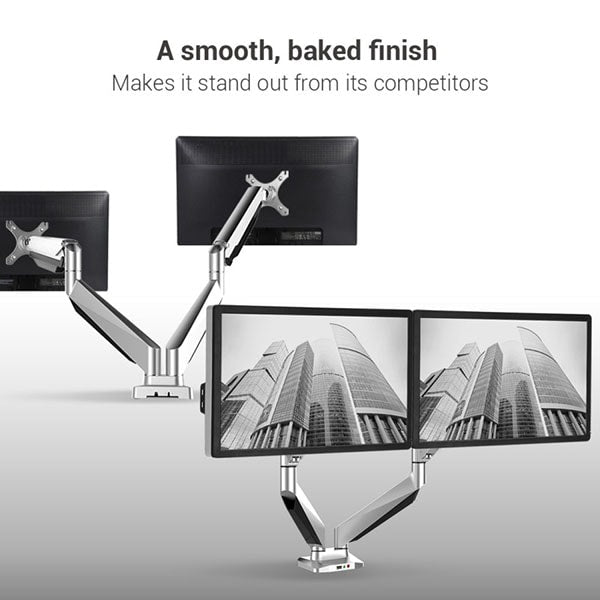

    Loctek D7D Dual Monitor Adjustable Arm

    Loctek D7D Dimensions

    Loctek D7D Dimensions

    Download the D7D Dimensional Illustration

    Loctek D7D Dimensional Illustration Pdf

    Loctek D7D Installation

    Setting up your D7D is easy (no tools required), but for more detailed information, please reference the Loctek D7D Installation Manual

    Loctek D7D Installation Manual Pdf

    Loctek D7T Specifications

    Manufacturer Loctek
    Model Number D7T
    Additional Functions Audio, Mic & USB Ports
    Screen Size Range 10~24"
    Supported VESA 75 x 75, 100 x 100 mm
    Swivel ±90°
    Rotation ±180°
    Tilt Angle -90°~15°
    Loading Capacity 4.4~19.8 lbs For Each
    Weight 16.96 lbs
    Dimensions 25.1 x 5.9 x 11.3 inches

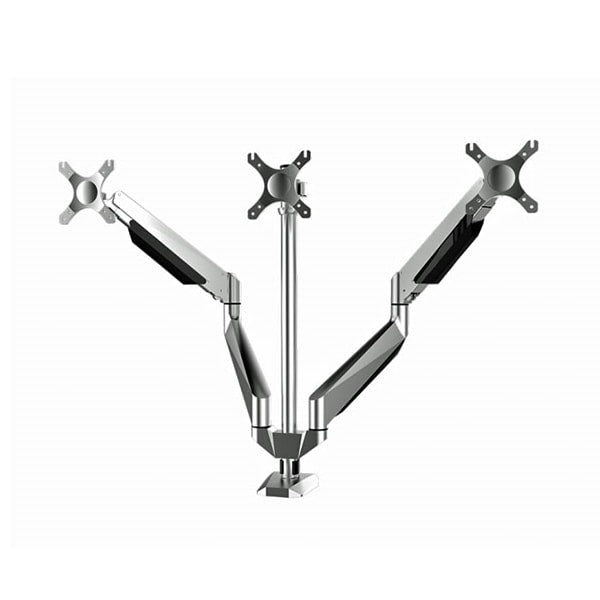

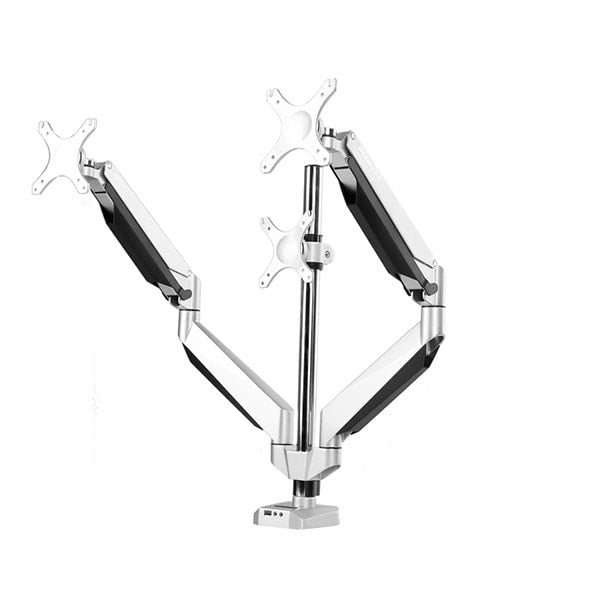

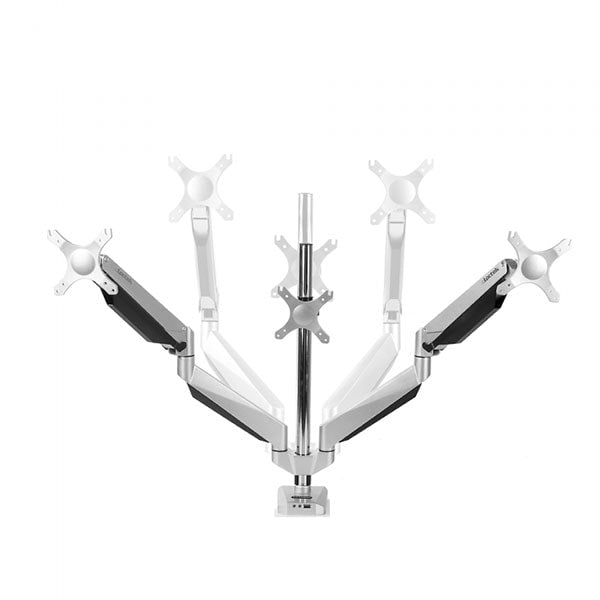

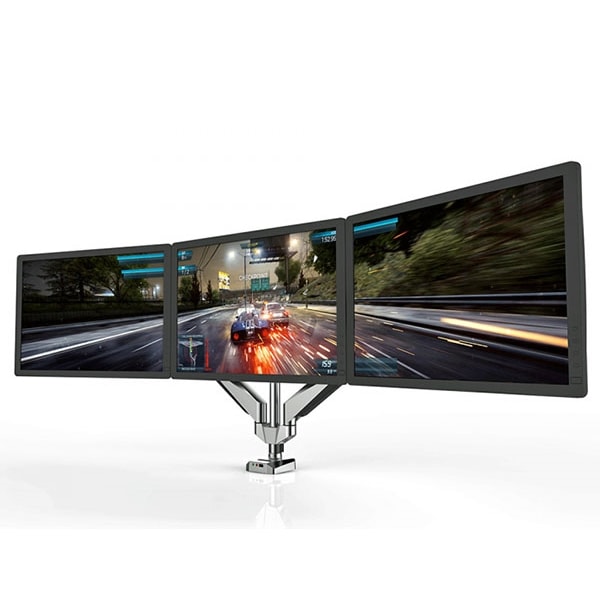

    Loctek D7T 3D View

    Loctek D7T Dimensions

    Loctek D7T Dimensions

    Download the D7T Dimensional Illustration

    Loctek D7T Dimensional Illustration Pdf

    Loctek D7T Installation

    Setting up your D7T is easy (no tools required), but for more detailed information, please reference the Loctek D7T Installation Manual

    Loctek D7T Installation Manual Pdf
